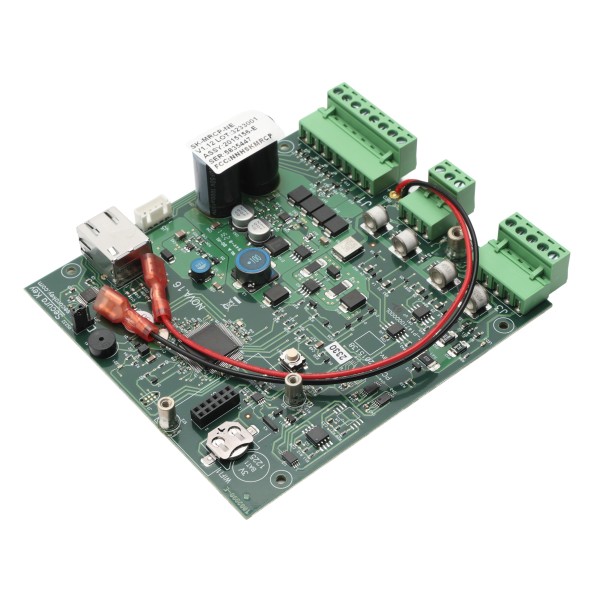

Secura Key SK-MRCP-NE NOVA.16 Control Panel w/ Connectors
NOVA.16 Multi-Reader Control Panel, No Enclosure, PCBA with Connectors
We are excited to announce the new NOVA.16 by Secura Key! This multi-reader access control panel system eliminates cable home runs from individual doors. Based on a powerful 32-bit RISC processor, it provides major upgrades to Secura Key’s legacy SK-NET system. Each panel connects to the local area network using built-in Ethernet connection. It also connects to a high speed, RS485 peripheral network that supports up to 16 Smart Readers, each controlling a single door or gate.
The peripheral network can extend up to 4,000 feet away from the controller. The NOVA.16’s RS-485 communication lines are protected with gas discharge tube surge suppressors, keeping systems running in areas with extreme weather conditions and power problems.
By reducing the number of control panels required for multi-door systems, plus the associated cost of providing electrical outlets, space and power supplies for those panels, the NOVA.16 provides huge savings in installation time and cost. The NOVA.16 can also be interconnected using the RS-485 Command Bus.
- Supports up to 16 doors using Smart Readers on an RS-485 bus
- 65,000 cards; 10,000 time-stamped events
- 15 programmable time zones, 32 holidays, and one door control Time Zone per reader
- Built-in TCP/IP capability for LAN/WAN connections
- Optional wireless LAN module and modems available
- UL294, FCC and CE regulatory approvals
- New system architecture eliminates cable home runs from individual doors
16.5-24VAC 40 VA transformer will power panel and up to 16 Smart Readers
24VDC 500 mA supply will power panel and up to 4 Smart Readers
24VDC 1A supply will power panel and 5-16 Smart Readers
Recommended Power Supply
16.5-24VAC 40VA transformer or 24VDC 500 mA plug-in DC Power Supply
Communications - Cable Requirements
LAN: CAT 5e or 6, connect to on-board RJ45 Ethernet connector
RS-485 Command Bus: Single twisted pair, shielded with ground up to 4000 feet
RS-232: 5-wire shielded cable, up to 115K Baud, full duplex 8N1 up to 100 ft.
Modem: Hayes compatible, 1.2 to 57.6 K baud
Printer: Serial printer (or parallel printer with serial converter)
Smart Readers: Use CAT5: use one pair for data, double up additional pairs for DC power and ground, or use CAT5 for data and 18/2 for power, or use Siamese cable with CAT5 AND 18/2 (COLEMAN cable 97395-06-23)
-40°F – 158°F (-40° – 70°C); 0-95% RH non-condensing
Card capacity 65,535, 16 Controlled Doors, 16 4x4 I/O Input/Relay boards, Door Transaction/Storage 10000 events, 15 Time Zones, 10 Door Unlock Zones, 32 Holidays, 16 Facility Codes, Latch/Alarm Shunt Timer ¼ - 30 seconds, Limited Use cards 65535, 1-500 uses, days, weeks or number of days after first use
Non-volatile (programming retained during power loss)
UL.cUL294, Part 15 Class B FCC, CE Mark
2 year Limited Warranty (see price list for terms and conditions)
Please Note: We recommend using Securakey Smart Readers. If using a card reader other than a Smart Reader, you will need to have one Single-Door Interface Wiegand Interface Unit (SK-WIO-1) per reader in order to use it with the NOVA.16.
|Product||NOVA.16 Control Panel (No Enclosure)|
